epraya.Music

Music(Hamer, Exper, graph=True, table=True)

Wrap function that calculates the spectrum and table of transitions of multisystems. If there is an interaction between the systems (electron-eletron or hiperfine), solves the total hamiltonian. Otherwise, use the function Cristalfm and sums the contributions to the total spectrum.

Parameters:

• Hamer (Class) – Container for the hamiltonian parameters of the system.

• Expe (Class) – Container for the experimental conditions.

• graph (Bool) – Plots the resulting spectrum and energy diagrams.

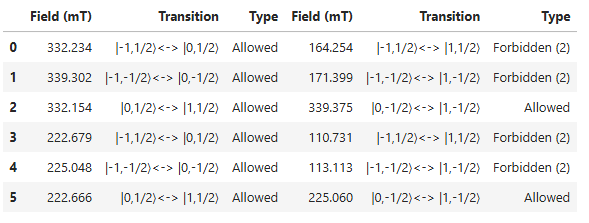

• table (Bool) – Generates the resonant fields and transitions table.

Returns:

• fild1 (np.array) – Array of the magnetic field.

• sumespct (np.array) – Array of the counts of the spectrum.

Example

import matplotlib.pyplot as plt
import epraya as epr
import numpy as np
Ham,Exp,_=epr.Start(2)
Ham.S2=1
Ham.S1=1
Ham.I1=1/2
Ham.g1=np.array([2.003, 2, 2])
Ham.A1=np.array([200, 200, 200])
Ham.Hpp1=[0, 20]
Ham.I2=1/2
Ham.g2=np.array([3.003, 3, 3])
Ham.A2=np.array([100, 100, 100])
Exp.Freq1=9.4
Exp.Points1=4096
Exp.Temperature1=300
Exp.Frange1=[0,800]

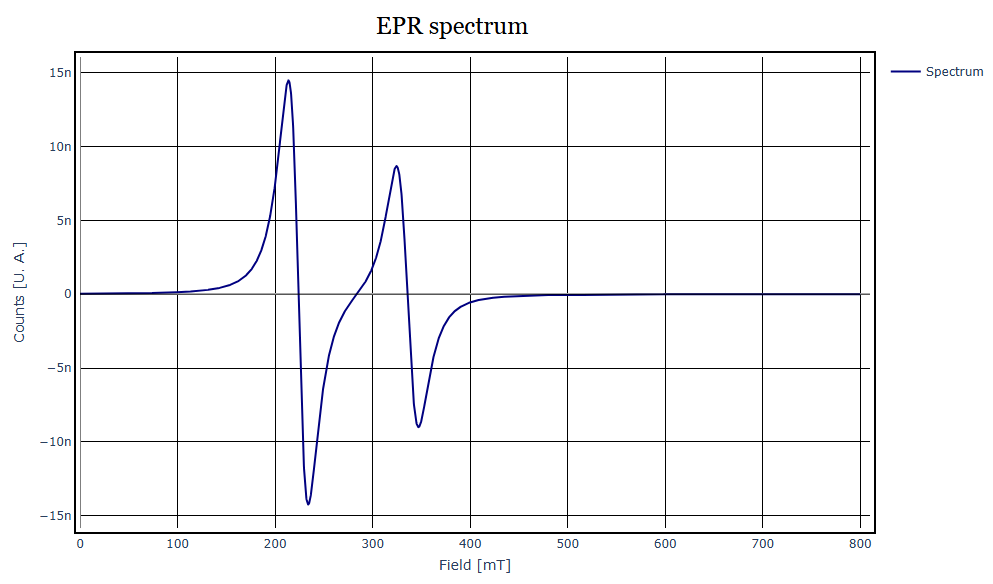

B,spc=epr.Music(Ham,Exp)
