epraya.Ori

Ori(Hamer, Expe)

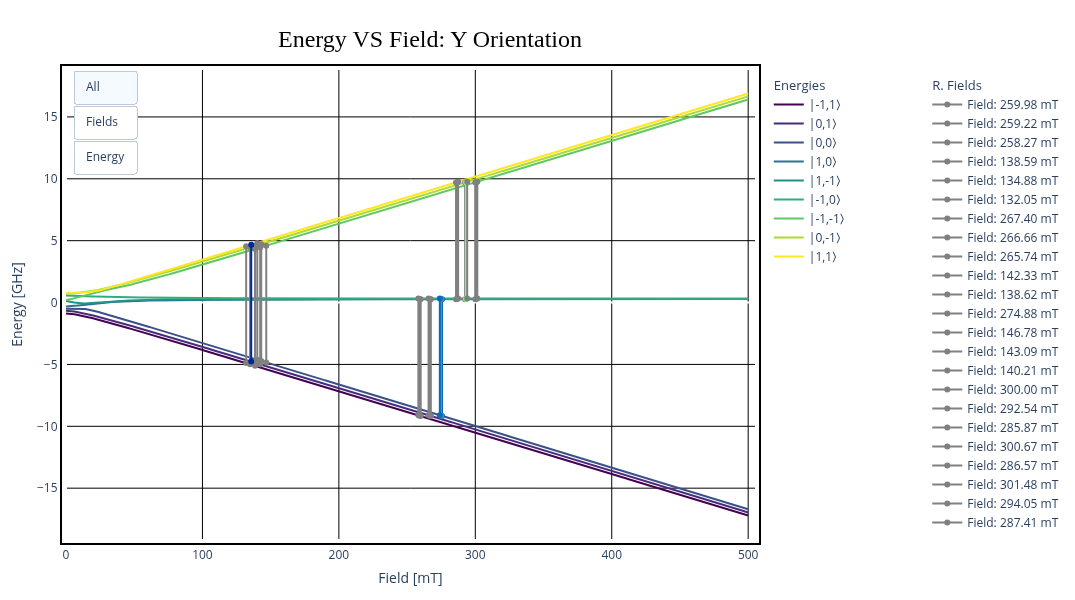

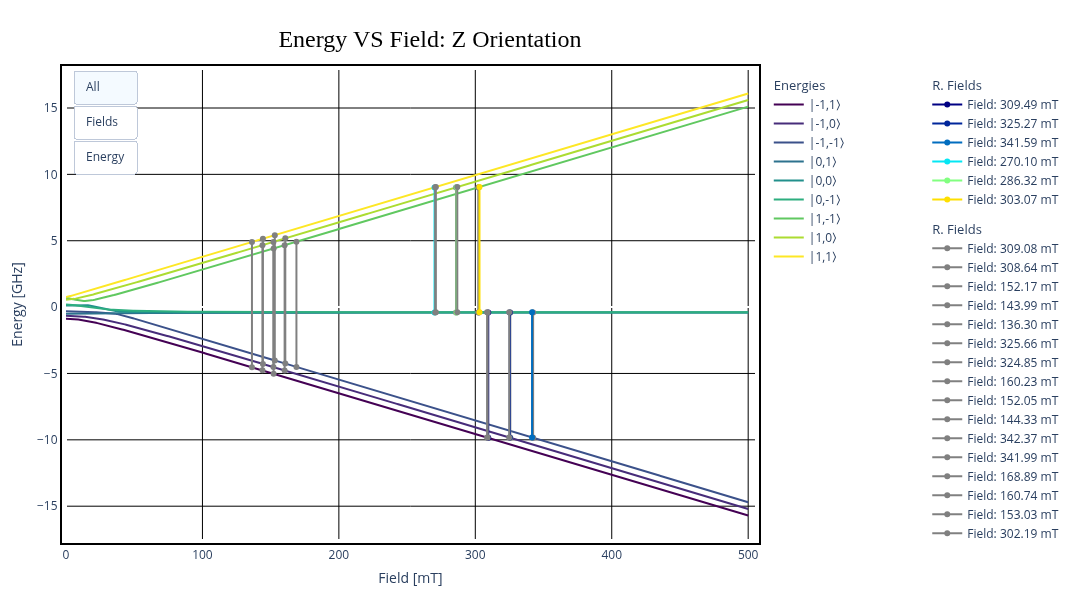

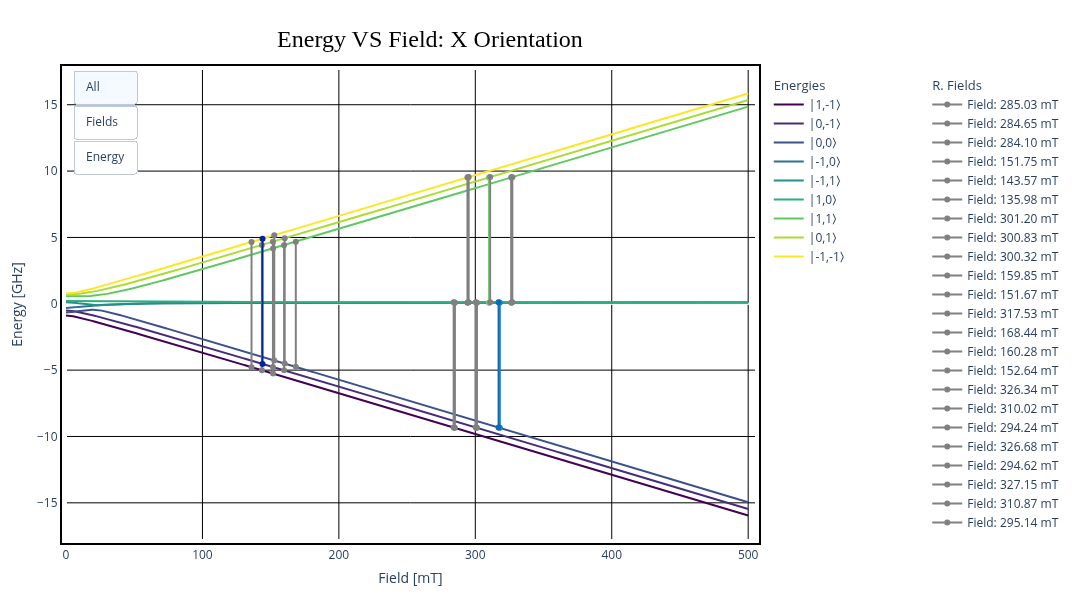

Creates the energy diagrams for orientations parallel to the X, Y and Z axis.

Parameters:

• Hamer (Class) – Container for the hamiltonian parameters of the system.

• Expe (Class) – Container for the experimental conditions.

Example

>>> import epraya as epr
>>> Ham,Exp,Vary=epr.Start()
>>> Ham.S=1
>>> Ham.I=1
>>> Ham.Hpp=[10,15]
>>> Ham.g=[2.2,2.4,2.2]
>>> Ham.A=[500,250,500]
>>> Ham.D=[600,100]
>>> Exp.Points=4096
>>> Exp.Frange=[0,500]
>>> epr.Ori(Ham,Exp)
