epraya.Sload

Sload(dat, rows, cols)

Basic function for data load of counts and fields, using the np.loadtxt function.

Parameters:

• dat (str) – Name of the data field.

• rows (int) – Number of rows to load

• cols (list) – List of two values with the field and count data [field, count].

Returns:

• field (np.array) – Array of the magnetic field values.

• rcount (np.array) – Array of the counts values.

Example

import epraya as epr
import matplotlib.pyplot as plt

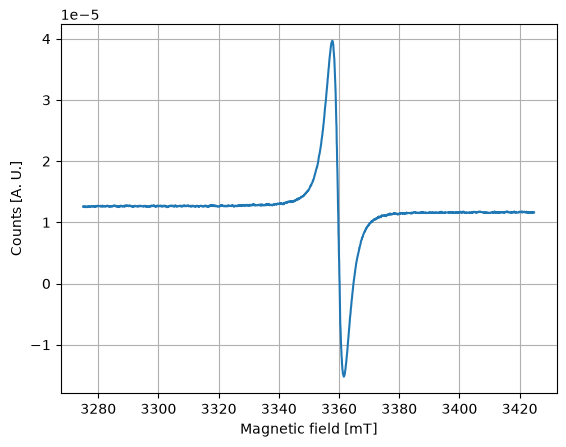

B,spc=epr.Sload('STRONG PITCH.dat',2046,[2,3])
plt.plot(B,spc)
plt.xlabel('Magnetic field [mT]')
plt.ylabel('Counts [A. U.]')
plt.grid()
plt.show()
